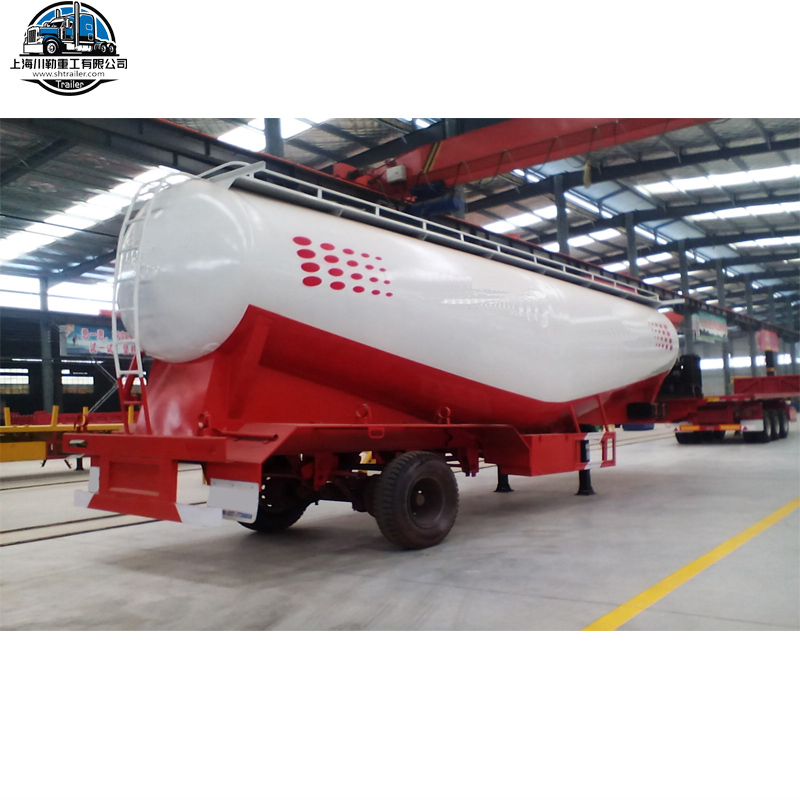

W Shape 55cbm Bulk Cement Tanker

Product Description:
Shanghai Trailer powder bulk cement tanker trailer is for large quantities of dust materials (bulk cement) transport of special vehicles. It is suitable for the transportation of fly ash, cement, limestone, ore powder, and other particles whose particle diameter is not more than 0.1m.

Bulk cement tank trailer Chinese high grade supplier
Bulk cement tank trailer Chinese high grade manufacturer
Bulk cement tank trailer China high grade factory

Description

MORE DETAILS

Shanghai trailer  choose high-tensile carbon steel material, welded by automatic Submerged-Arc processes. Tanks using automatic longitudinal/ring to the welding seam are firm and level off, can be independent warehouse storage, shipment different abrasive materials, unloading speed, low residual rate, safety performance is high, easy to operate. Good performance of the simple structure, convenient maintenance, vulcanization.

The shape is round, V or M tanks, the material can choose carbon steel, stainless steel, aluminum alloy. Can choose air compressor or direct drive transmission shaft (optional belt drive and motor drive). We adopt the world-famous brands of parts, like JOST, WABCO braking valve, etc.

Shanghai Trailer  are a professional manufacturer of semi-trailers, provide customized service, design as the customers’ every request.

We have a professional trailer design department, rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service is 24 hours service for you. Our cooperation can be ODM or OEM mode.

Feature:

1. Loading rate >98%  fully filling

2. Residual rate <0.2%

3. Delivery height >25m  suitable most silo

4. Faster unloading >1.5ton/min  save fuel

Bulk Cement Tank Trailer supplier
Bulk cement tank trailer factory
Bulk cement tank trailer company
Bulk cement tank trailer manufacturer
Bulk cement tank trailer wholesaler

Tank Body

Shape :Optional(One silo with V type or Two, Three silos design

Dimension :12000mm*2490mm*3990mm(Exact design depend on the final design)

Tare weight :About 7500KG-15000KG

Total Volume(m3): 30-68m3

Tank Body Material :5mm or 6mm/Q235 carbon steel

End Plate: 5mm or 6mm/Q235 carbon steel

Diesel Engine: WEICHAI, Tianhe 4100/4102 or other brand

Compressor :BOHAI 10m3/12m3 or other brands

Manhole Cover: Carbon steel,500mm

Discharging Valve :Diameter is 3 or 4 inch

Discharging Pipe :Discharging Pipe

CatWalk :With(Common model or special design)

Chassis

Main Beams :Welding Design, Q345 carbon steel

Axle: 2/3axles,12T/13T/16T, BPW/FUWA/HUA JING brand

Landing Gear: JostD200T or China brand 28T

King pin :Jost2.00 or 3.5-inch bolt-in kingpin

Suspension: Mechanical suspension/Germany or America type/Air Suspension

Leaf Spring: 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

Pneumatic Braking System: WABCO RE 6 relay valve;T30/30+30 Spring brake chamber;45L air tanks

Rim: 9.00-22.5/8.00-20/8.5-20 China brand

Tire :12R22.5/315 80R22.5/11.00R20/12.00R20,Brand can be chosen

ABS: Optional

Painting :Complete Chassis sandblasting to clean rust,1 coat of anticorrosive :prime,2 coats of final paint

Accessories: One standard toolbox

Shipping Terms: By bulk cargo, RORO

Bulk cement tank trailer Chinese high quality factory
Bulk cement tank trailer Chinese high grade wholesaler
Bulk cement tank trailer China good manufacturer
Bulk cement tank trailer China high quality manufacturer
Bulk cement tank trailer Chinese good manufacturer

Our service:

About Factory Inspection: We support video factory inspections if required by our customers.

About Export Certification: We have export certificates to all countries in Africa.(e.g. Nigeria: soncap; Cameroon: BESC ; Matadi: FERI ; Benin: ECTN ; Gabon: BIC/CRN ; Angola: CNCA and BV )

About Production: We send regular videos to our customers to keep them informed of progress and production.

About Packing and Delivery: We are professional export packers and will spray the entire vehicle with wax before dispatch to prevent corrosion from the humid air of shipping, and in the case of bulk ships we will additionally use a tarp cover to protect the surface.

About Product Inspection: We will test the performance of the vehicle before delivery to ensure that it meets the required standards.Generally under normal use, our trailers can be used for 10-15 years.

About Operating Instructions: We will provide guidance on the operation and maintenance of the vehicle in the form of short videos to make it easier for customers to become proficient.

About After Sales: Our company promise a one-year warranty period, and we provide our customers with free accessories which is easily damaged. If you have any problems with the trailer, you can contact our sales at any time within 24 hours.
