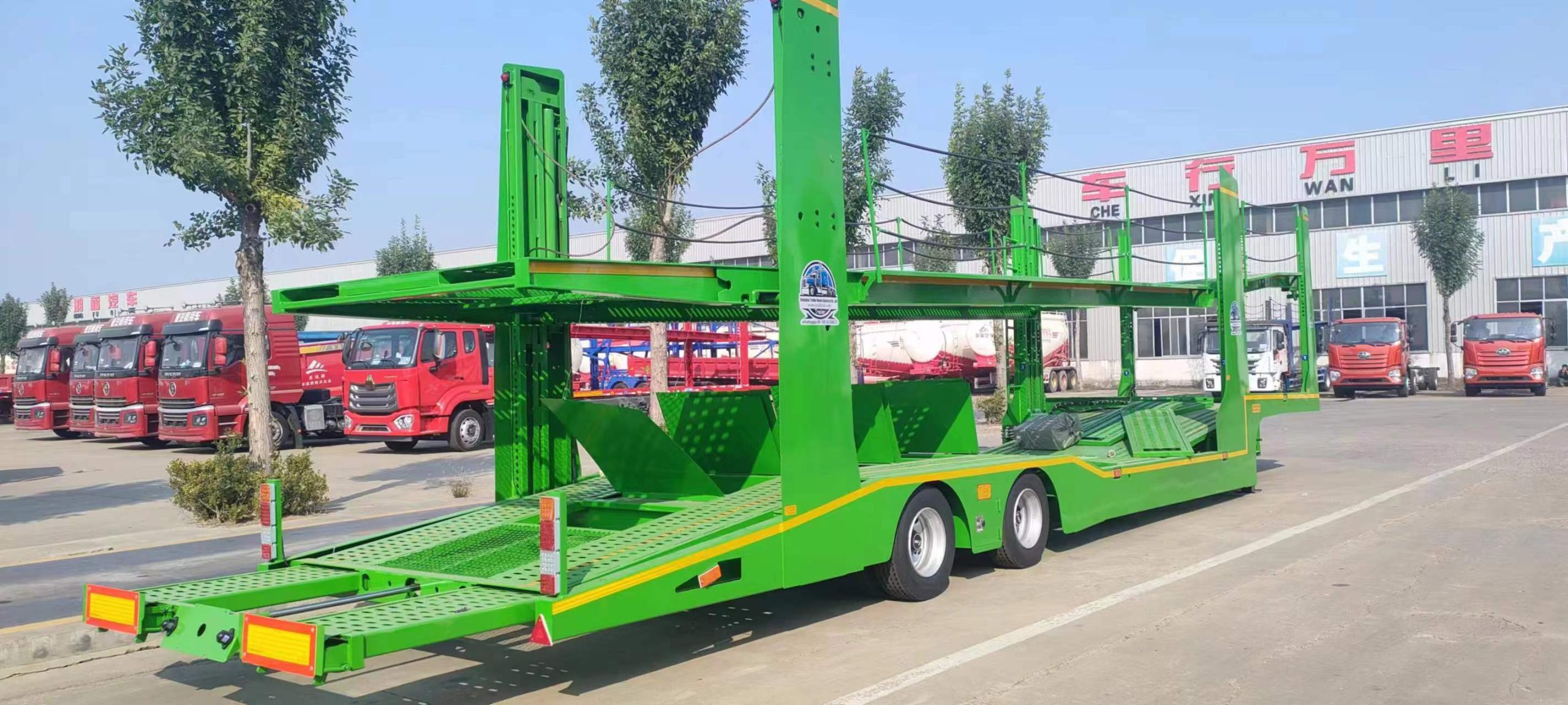

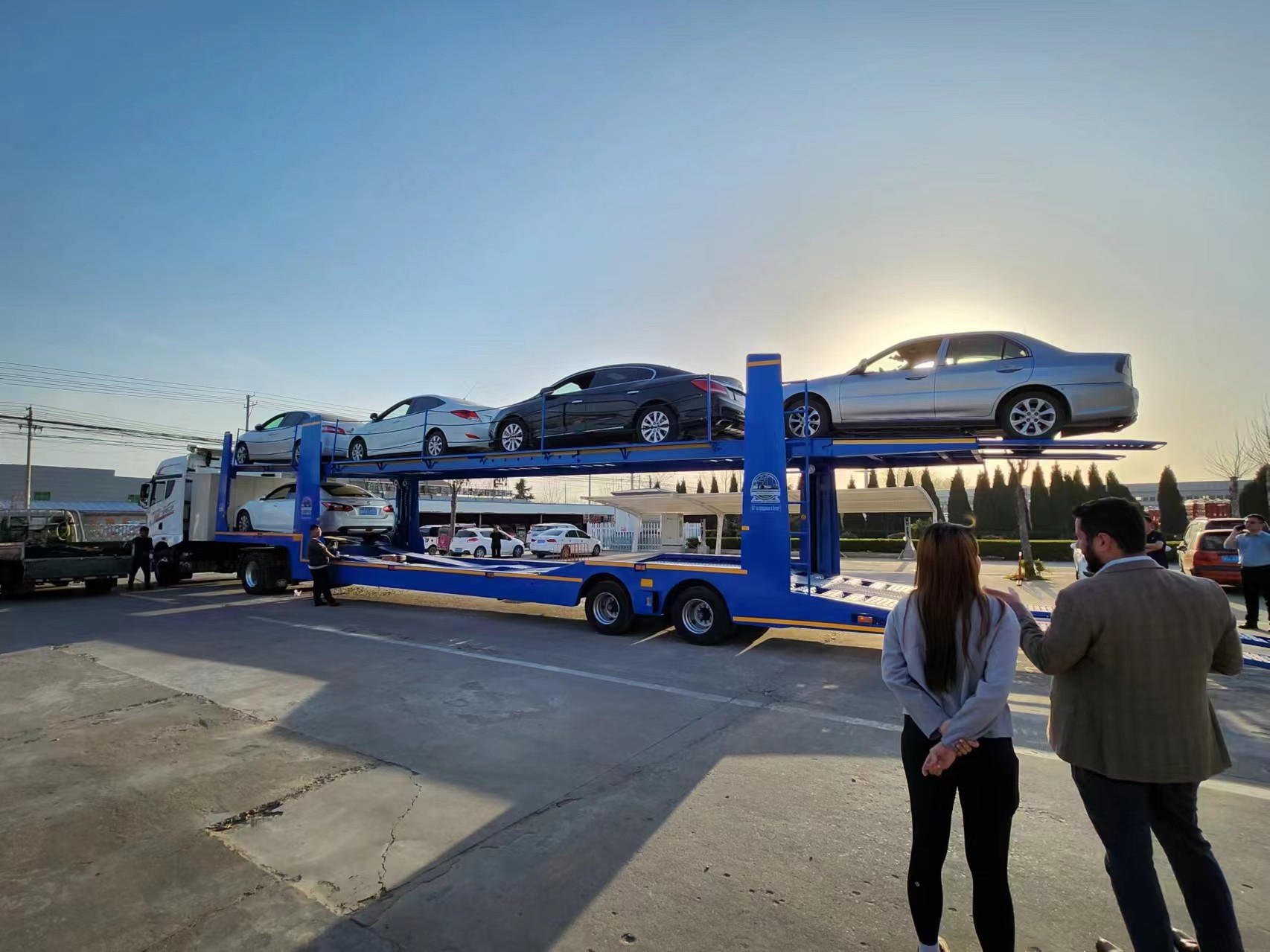

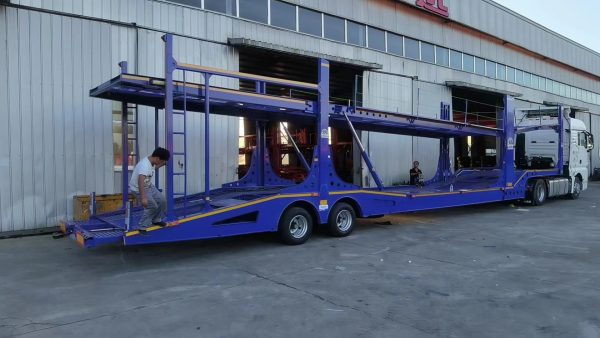

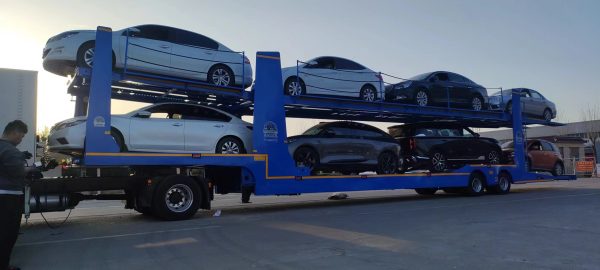

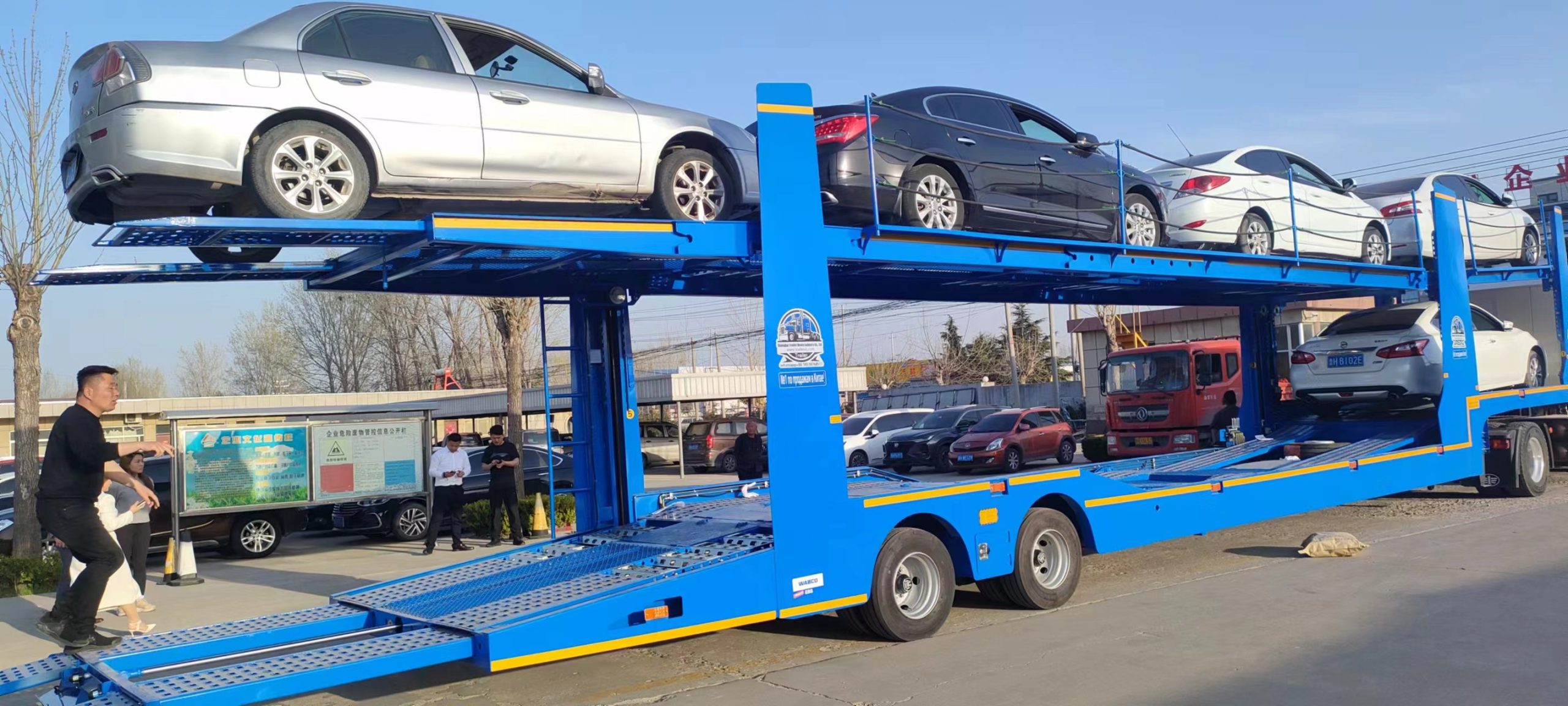

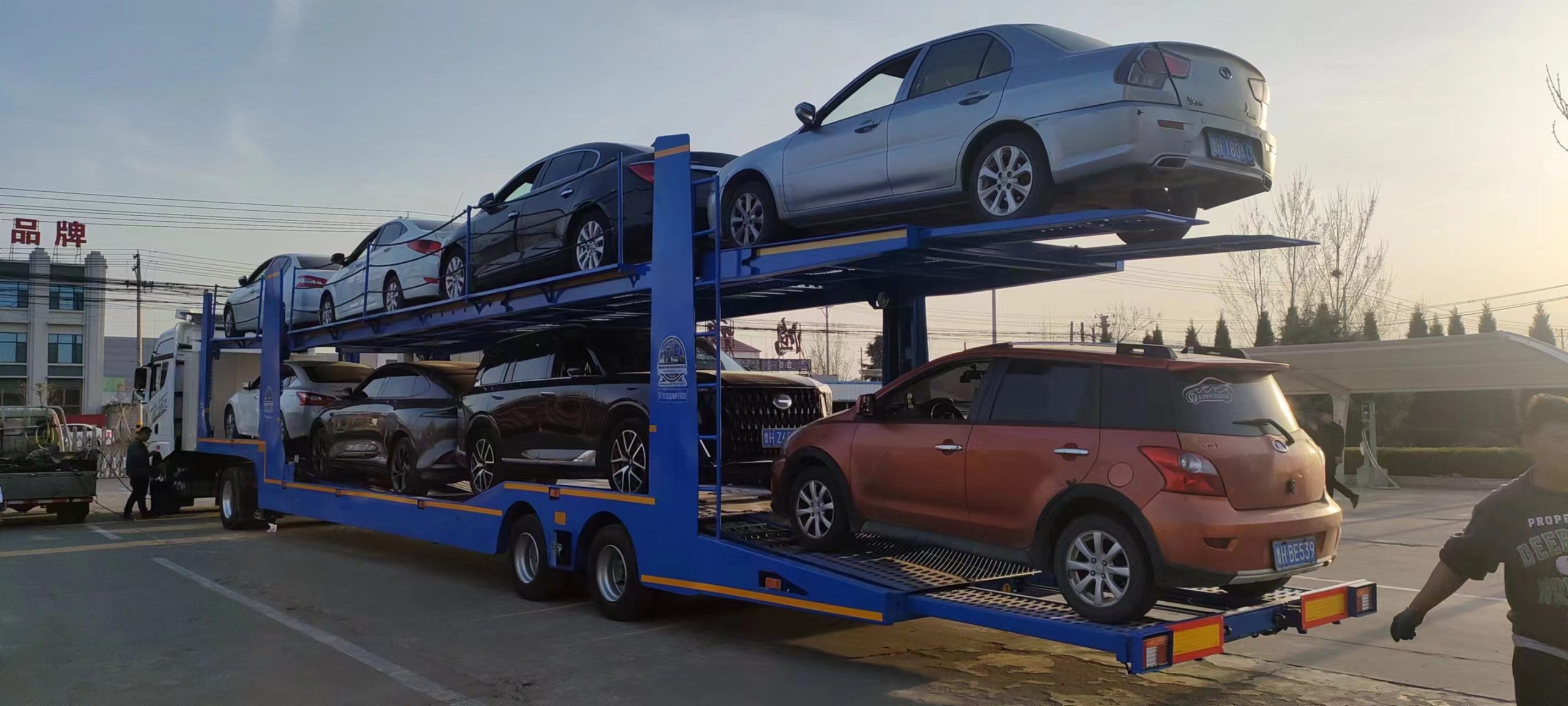

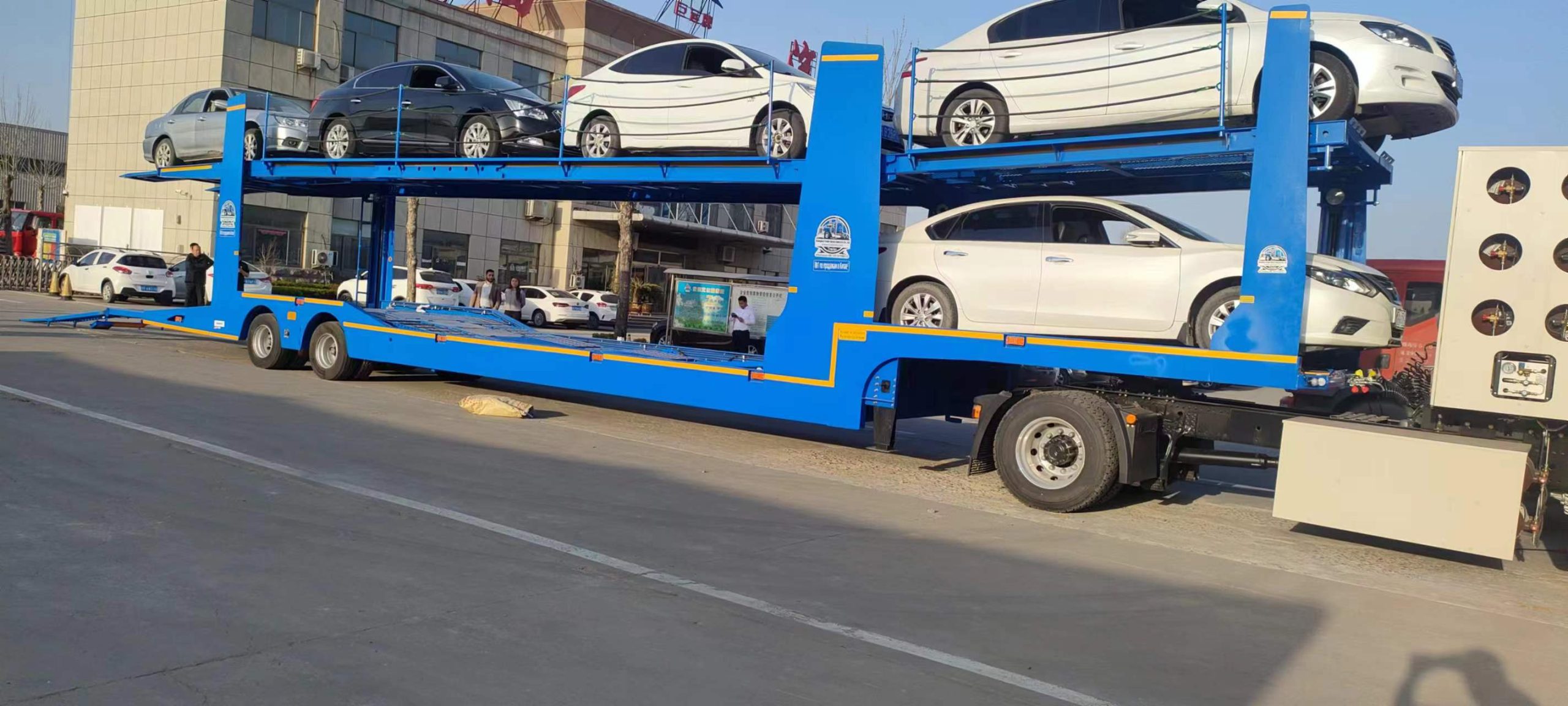

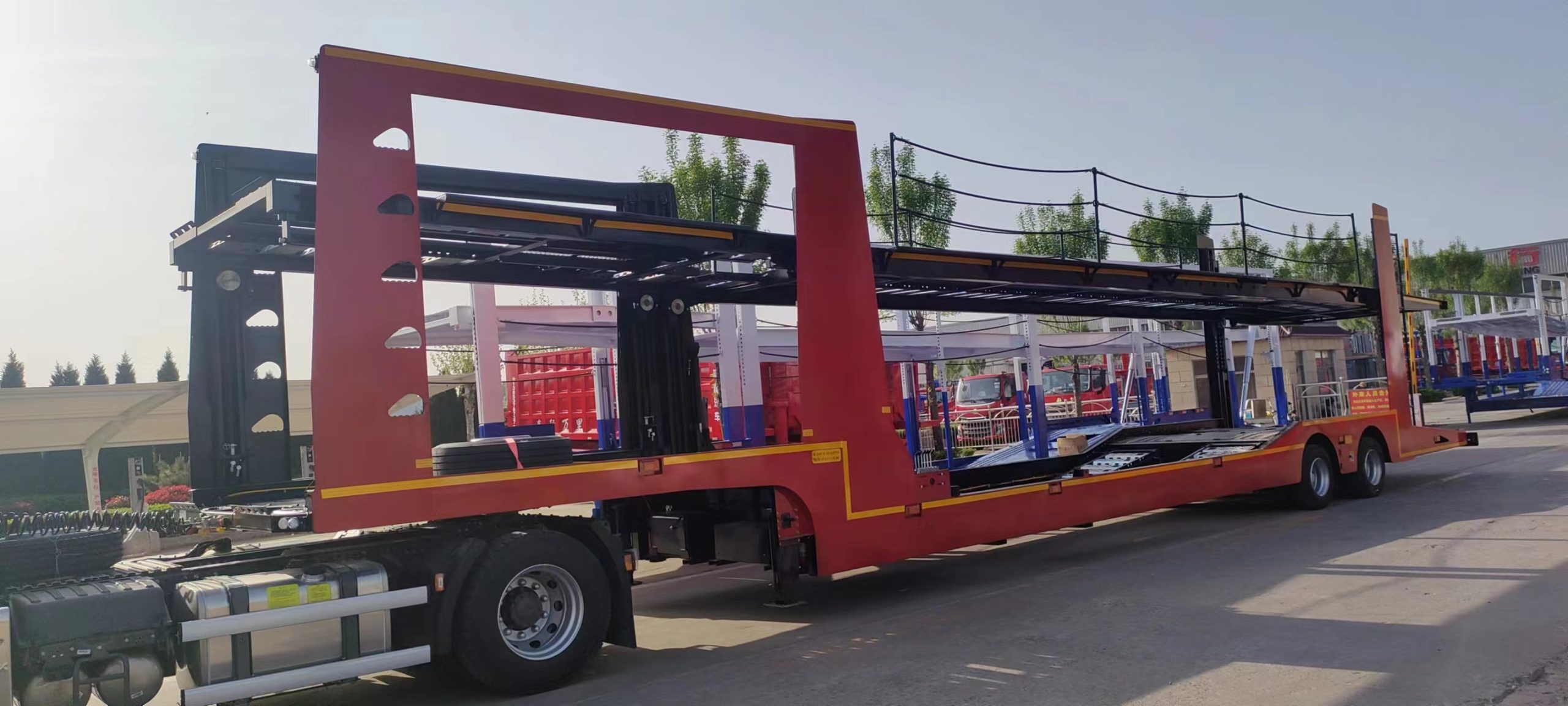

8-Position 2-Axle Auto Transport Trailer
Fuwa Axle (optional:SAF/BPW)
Air Suspension (optional:SAF/BPW)
Cylinder Hydraulic Lifting System
Screw Lifting System
Description
Vehicle name: Vehicle transport semi-trailer Vehicle model: LYZ9220TCL
Body color: red black/silver/gray/blue/green
Outer dimensions (mm): 17100 * 2550 * 3980
Number of tires: 8
Tire specification: 235/75R17.5 16PR
Track width (front/rear) (mm): 2000/2000
Wheelbase (mm): 10500+1500
Axle load (kg): -/12000 (two sets of axles)
Number of axes: 2
Total mass (kg): 34300
Curb weight (kg): 11300
Rated load capacity (kg): 23000
Maximum allowable total weight of semi-trailer saddle (kg): 10000
