50T Animals Transport Livestock Trailer
50T Animals Transport Livestock Trailer
Shanghai Trailer fence semi trailers are commonly used type of equipment in the transportation industry . Fence semi trailers are used to deliver products like pipe , steel , lumber , bulker cargo and other items that would be difficult to load into the back of a trailer. 3 axle fence semi trailer is widely used in a various industries.
Description
Shanghai trailer Fence Cargo Trailer choose Q345B carbon high-tensile steel material, welded by automatic Submerged-Arc processes.
We adopt world famous brand of parts, like JOST, WABCO braking valve etc. This makes the trailer not only increase long serivce life but aslo improve operating efficiency and save maintenance costs.

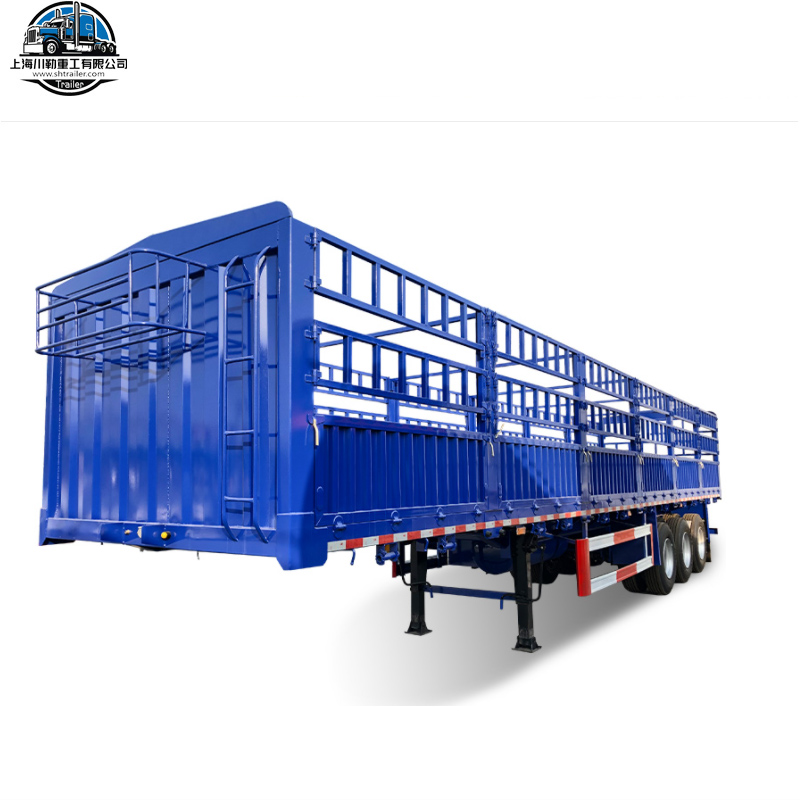

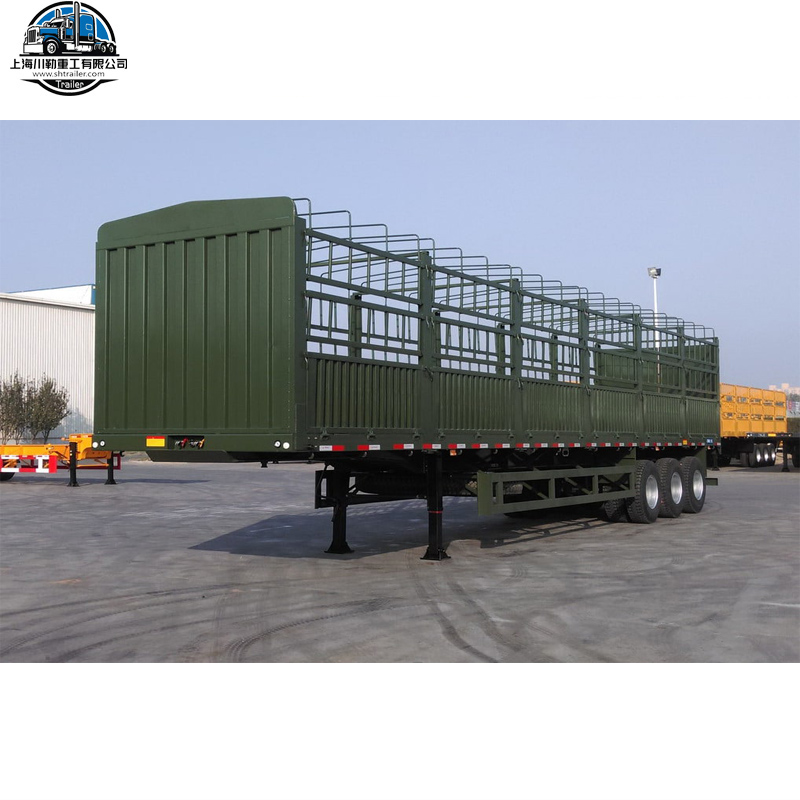

Fence Cargo Semi Trailer has a fence structure design. We have 2/3/4 axles, and load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height.
Tare Weight:Approx. 6.2 T
Dimension:12400*2500*3200mm
Loading Capacity :30-100T
Axle:13T/16T, FUWA/BPW
Rim: 9.00*22.5/8.00-20/8.5-20
Suspension: Mechanical suspension(Germany type or America type) or Air suspension
Leaf Spring: 90(width)mm*13(thickness)mm*10 layer(especial for exporting market)
King pin :Jost brand 2.0 or 3.5 inch
Spport leg :Jost brand two speed
Main beam: Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm; Material is Q345B steel
Side beam: 16mm channel steel (Material is Q235B steel)
Bottom Platform: 3mm checquered steel plate
Side wall: 600 mm height (can be customized)
Brake chamber: Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks
ABS: Optional
Twist locks: Optional
Valve :Wabco valve (especial for exporting market)
Light: LED Light (especial for exporting market)
Voltage :24V
Receptacle: 7 ways (7 wire harness)
Tool box :One piece 1m *0.5m*0.5m ( size can be customized)
Painting :Complete chassis sand blasting to clean rust, 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer
Shipping terms: By bulk vessel, RORO, or 40HQ container
Any parts fitted could according to clients request, contact us to get more.
Our service:
About Factory Inspection: We support video factory inspections if required by our customers.
About Export Certification: We have export certificates to all countries in Africa.(e.g. Nigeria: soncap; Cameroon: BESC ; Matadi: FERI ; Benin: ECTN ; Gabon: BIC/CRN ; Angola: CNCA and BV )
About Production: We send regular videos to our customers to keep them informed of progress and production.
About Packing and Delivery: We are professional export packers and will spray the entire vehicle with wax before dispatch to prevent corrosion from the humid air of shipping, and in the case of bulk ships we will additionally use a tarp cover to protect the surface.
About Product Inspection: We will test the performance of the vehicle before delivery to ensure that it meets the required standards.Generally under normal use, our trailers can be used for 10-15 years.
About Operating Instructions: We will provide guidance on the operation and maintenance of the vehicle in the form of short videos to make it easier for customers to become proficient.
About After Sales: Our company promise a one-year warranty period, and we provide our customers with free accessories which is easily damaged. If you have any problems with the trailer, you can contact our sales at any time within 24 hours.
