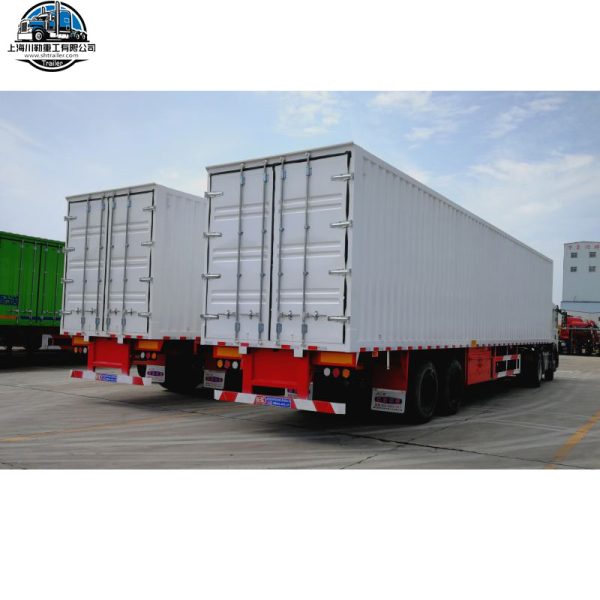

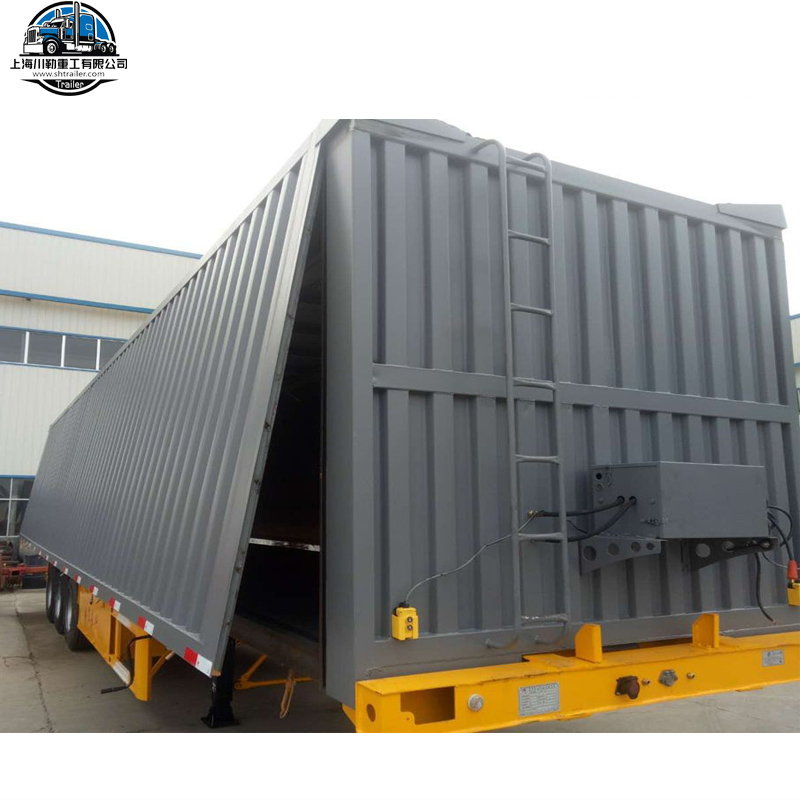

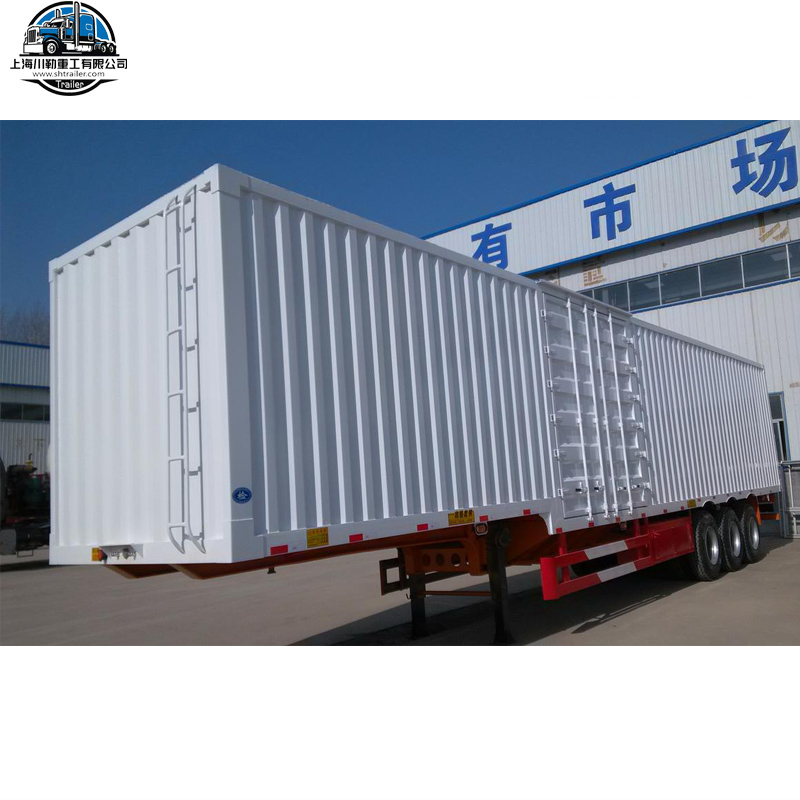

40ft 60 Ton Transport Box Van semi Trailer

Shanghai trailer  use high-quality tensile steel to reduce beam fracture probability. The main beam is opting for high tensile steel Q345B and the axle can be selected of BPW or FUWA brand. We adopt the world-famous brands of parts, like JOST, WABCO braking valve, etc.

Shanghai Trailer are a professional manufacturer of semi-trailers, provide customized service, design as the customers’ every request.

We have a professional trailer design department, rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service is 24 hours service for you. Our cooperation can be ODM or OEM mode.

Van Box Semi Trailer Chinese best company
Van box semi trailer China good factory
Van box semi trailer Chinese best wholesaler
Van box semi trailer China best supplier
Van box semi trailer Chinese high grade supplier

Van Type semi trailer

Tare Weight :Approx.6.2 T

Dimension :12400*2500*3550mm

Loading Capacity :30-100 T

Axle: 13T/16T, FUWA/BPW

Rim :9.00*22.5/8.00-20/8.5-20

Suspension :Mechanical suspension(Germany type or America type) or Air suspension

Leaf Spring :90(width)mm*13(thickness)mm*10 layer(especial for exporting market)

King pin: Jost brand 2.0 or 3.5 inch

Spport leg: Jost brand two speed

Main beam :Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm; Material is Q345B steel

Side beam: 16mm channel steel (Material is Q235B steel)

Bottom Platform: 3mm checquered steel plate

Side wall: 600 mm height (can be customized)

Brake chamber: Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks

ABS: Optional

Twist locks: Optional

Valve :Wabco valve (especial for exporting market)

Light :LED Light (especial for exporting market)

Voltage: 24V

Receptacle: 7 ways (7 wire harness)

Tool box :One piece 1m *0.5m*0.5m ( size can be customized)

Painting :Complete chassis sand blasting to clean rust, 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer

Shipping terms: By bulk vessel, RORO, or 40HQ container

Any parts fitted could according to clients request, contact us to get more.

Van box semi trailer China high quality wholesaler
Van box semi trailer China good manufacturer
Van box semi trailer Chinese high grade wholesaler
Van box semi trailer Chinese high grade company

Our service:

About Factory Inspection: We support video factory inspections if required by our customers.

About Export Certification: We have export certificates to all countries in Africa.(e.g. Nigeria: soncap; Cameroon: BESC ; Matadi: FERI ; Benin: ECTN ; Gabon: BIC/CRN ; Angola: CNCA and BV )

About Production: We send regular videos to our customers to keep them informed of progress and production.

About Packing and Delivery: We are professional export packers and will spray the entire vehicle with wax before dispatch to prevent corrosion from the humid air of shipping, and in the case of bulk ships we will additionally use a tarp cover to protect the surface.

About Product Inspection: We will test the performance of the vehicle before delivery to ensure that it meets the required standards.Generally under normal use, our trailers can be used for 10-15 years.

About Operating Instructions: We will provide guidance on the operation and maintenance of the vehicle in the form of short videos to make it easier for customers to become proficient.

About After Sales: Our company promise a one-year warranty period, and we provide our customers with free accessories which is easily damaged. If you have any problems with the trailer, you can contact our sales at any time within 24 hours.
