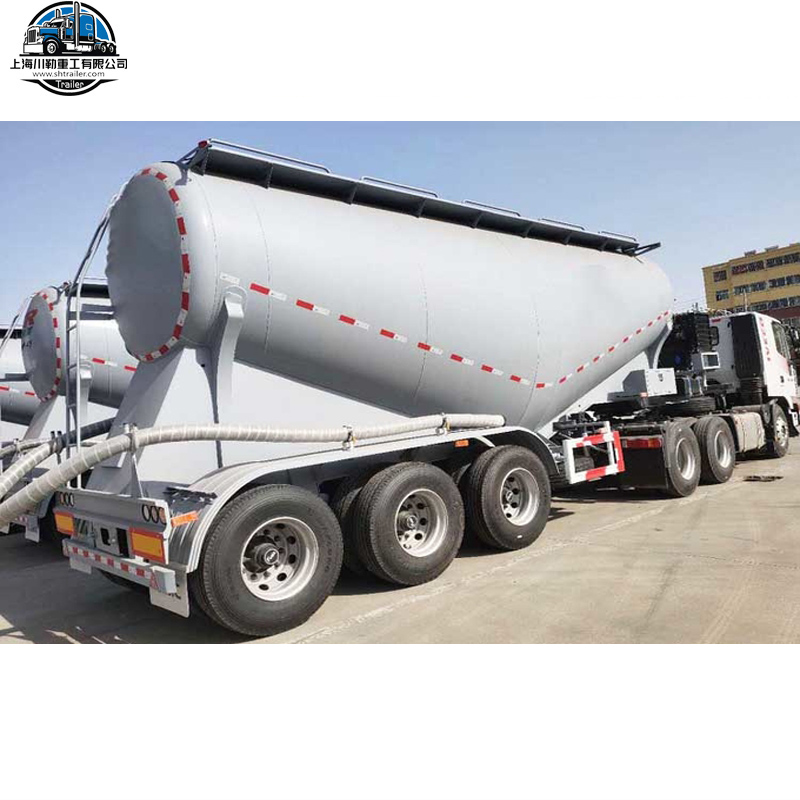

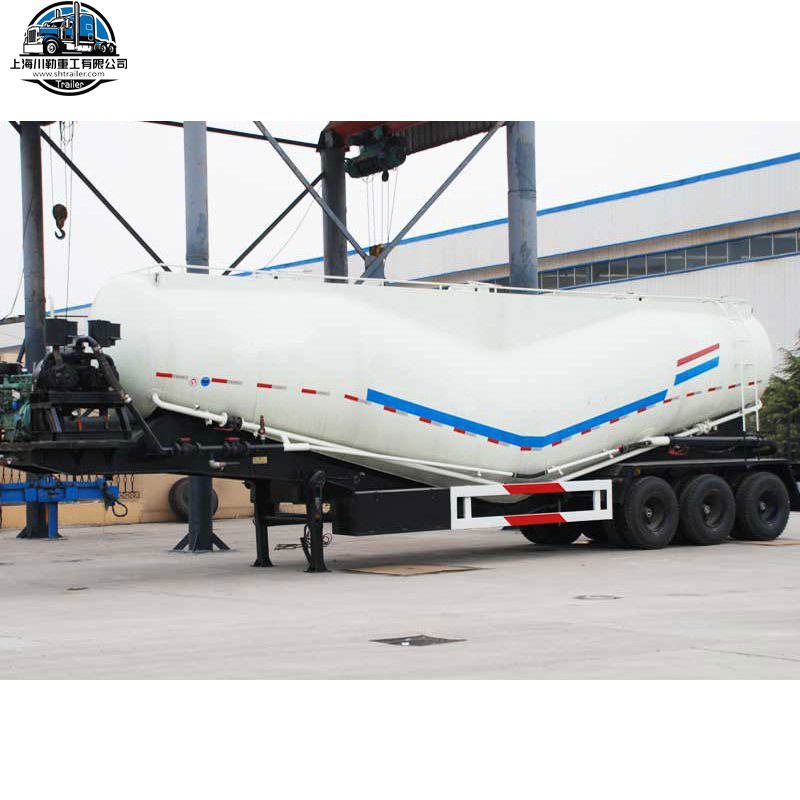

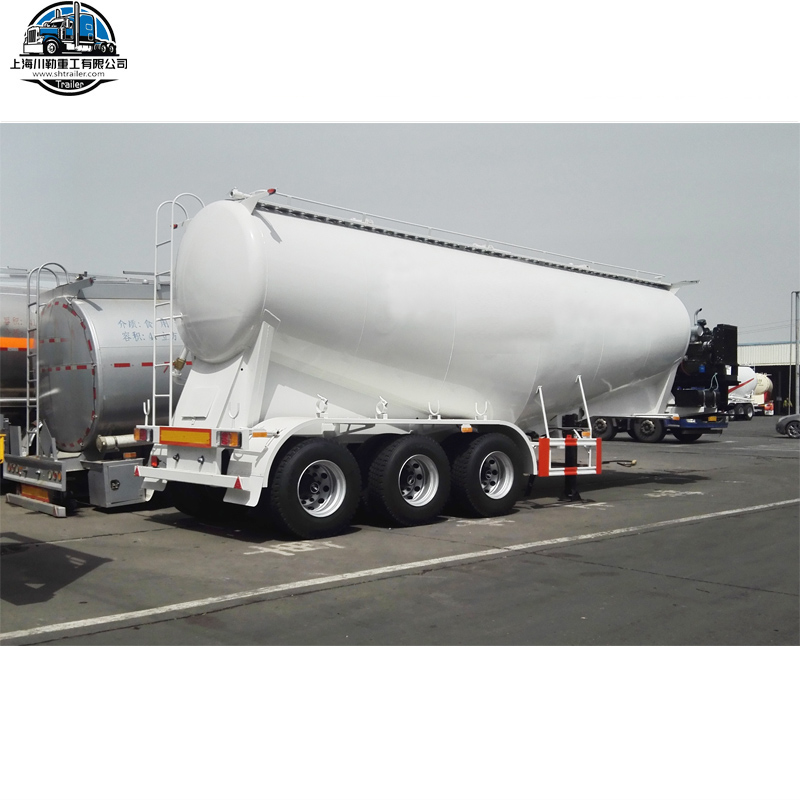

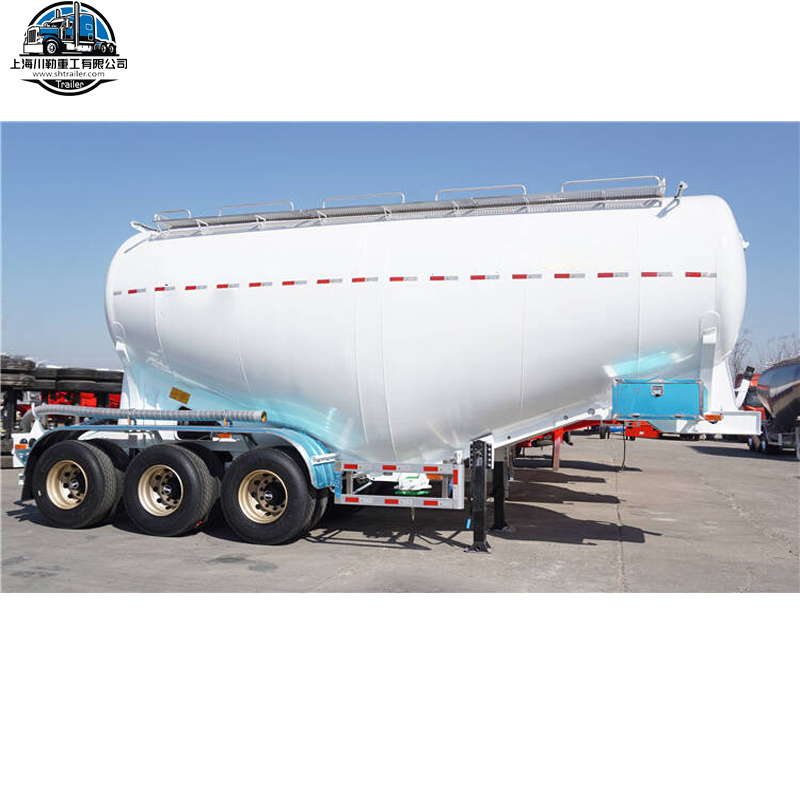

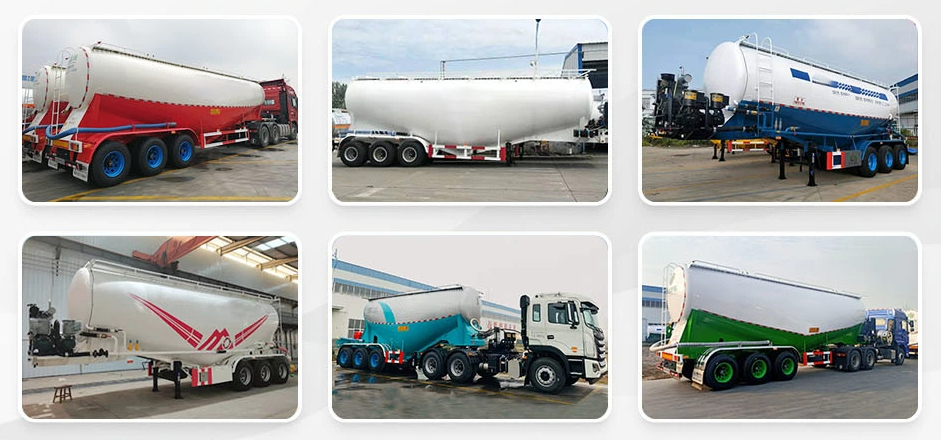

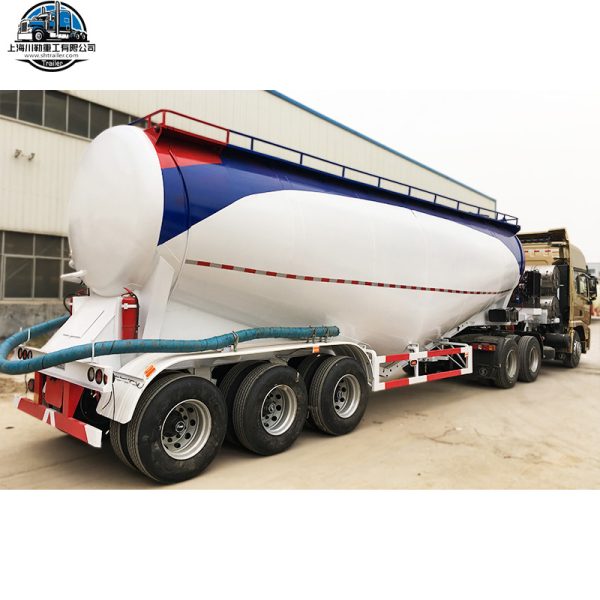

3 Axle 50cbm Bulk Cement Trailer
Product Description:
Shanghai Trailer powder bulk cement tanker trailer is for large quantities of dust materials (bulk cement) transport of special vehicles. It is suitable for the transportation of fly ash, cement, limestone, ore powder, and other particles whose particle diameter is not more than 0.1m.
Bulk cement tank trailer Chinese best company
Bulk cement tank trailer China best factory
Bulk cement tank trailer China high quality wholesaler
Description
Shanghai trailer choose high-tensile carbon steel material, welded by automatic Submerged-Arc processes. Tanks using automatic longitudinal/ring to the welding seam are firm and level off, can be independent warehouse storage, shipment different abrasive materials, unloading speed, low residual rate, safety performance is high, easy to operate. Good performance of the simple structure, convenient maintenance, vulcanization.
The shape is round, V or M tanks, the material can choose carbon steel, stainless steel, aluminum alloy. Can choose air compressor or direct drive transmission shaft (optional belt drive and motor drive). We adopt the world-famous brands of parts, like JOST, WABCO braking valve, etc.
Shanghai Trailer are a professional manufacturer of semi-trailers, provide customized service, design as the customers’ every request.
We have a professional trailer design department, rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service is 24 hours service for you. Our cooperation can be ODM or OEM mode.
Feature:
1. Loading rate >98% fully filling
2. Residual rate <0.2%
3. Delivery height >25m suitable most silo
4. Faster unloading >1.5ton/min save fuel
Bulk Cement Tank Trailer supplier
Bulk cement tank trailer factory
Bulk cement tank trailer company
Bulk cement tank trailer manufacturer
Bulk cement tank trailer wholesaler
Tank Body
Shape :Optional(One silo with V type or Two, Three silos design
Dimension :12000mm*2490mm*3990mm(Exact design depend on the final design)
Tare weight :About 7500KG-15000KG
Total Volume(m3): 30-68m3
Tank Body Material :5mm or 6mm/Q235 carbon steel
End Plate: 5mm or 6mm/Q235 carbon steel
Diesel Engine: WEICHAI, Tianhe 4100/4102 or other brand
Compressor :BOHAI 10m3/12m3 or other brands
Manhole Cover: Carbon steel,500mm
Discharging Valve :Diameter is 3 or 4 inch
Discharging Pipe :Discharging Pipe
CatWalk :With(Common model or special design)
Chassis
Main Beams :Welding Design, Q345 carbon steel
Axle: 2/3axles,12T/13T/16T, BPW/FUWA/HUA JING brand
Landing Gear: JostD200T or China brand 28T
King pin :Jost2.00 or 3.5-inch bolt-in kingpin
Suspension: Mechanical suspension/Germany or America type/Air Suspension
Leaf Spring: 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
Pneumatic Braking System: WABCO RE 6 relay valve;T30/30+30 Spring brake chamber;45L air tanks
Rim: 9.00-22.5/8.00-20/8.5-20 China brand
Tire :12R22.5/315 80R22.5/11.00R20/12.00R20,Brand can be chosen
ABS: Optional
Painting :Complete Chassis sandblasting to clean rust,1 coat of anticorrosive :prime,2 coats of final paint
Accessories: One standard toolbox
Shipping Terms: By bulk cargo, RORO
Bulk cement tank trailer Chinese high grade manufacturer
Bulk cement tank trailer China high grade factory
Bulk cement tank trailer Chinese high grade factory
Bulk cement tank trailer China high grade manufacturer
Bulk cement tank trailer China good company
Our service:
About Factory Inspection: We support video factory inspections if required by our customers.
About Export Certification: We have export certificates to all countries in Africa.(e.g. Nigeria: soncap; Cameroon: BESC ; Matadi: FERI ; Benin: ECTN ; Gabon: BIC/CRN ; Angola: CNCA and BV )
About Production: We send regular videos to our customers to keep them informed of progress and production.
About Packing and Delivery: We are professional export packers and will spray the entire vehicle with wax before dispatch to prevent corrosion from the humid air of shipping, and in the case of bulk ships we will additionally use a tarp cover to protect the surface.
About Product Inspection: We will test the performance of the vehicle before delivery to ensure that it meets the required standards.Generally under normal use, our trailers can be used for 10-15 years.
About Operating Instructions: We will provide guidance on the operation and maintenance of the vehicle in the form of short videos to make it easier for customers to become proficient.
About After Sales: Our company promise a one-year warranty period, and we provide our customers with free accessories which is easily damaged. If you have any problems with the trailer, you can contact our sales at any time within 24 hours.
